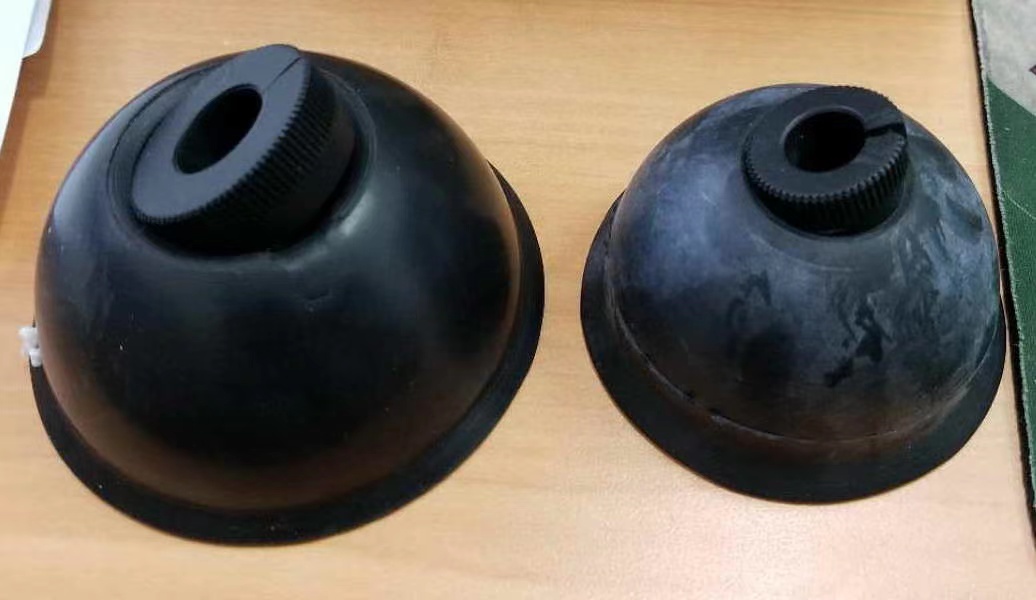

Rubber Recess Former Magnet
Short Description:
Rubber recess former magnet is deally designed for fixing spherical ball lifting anhcors on the side mold, instead of traditional rubber recess former screwing.
Rubber Based Steel Recess Former Magnet is a new version of magnetic former for locating the spherical head lifting anchor into the position under the processing of precast production. Compared to standard steel recess former magnet, it features light dead weight, but keeping same holding forces, which helps for reducing the burden of manual operations. The composition of rubber material is flexible, durable and reusable, also not easy to be stained with concrete. The fishtail on the bottom makes it much more easy to take off after concrete demoulding. Meanwhile, it could extremely protect the concrete edge of located hole from breaking up.
The rubber former magnet is shaped with a top hole for positioning the lifting anchor with rubber grommet. The huge frictional force between rubber recess former magnet and rubber seal could assist the anchor from sliding and moving.
Specifications:
| Lifting Anchor Capacity | D | d | H | Screw | Force |
| mm | mm | mm | KG | ||
| 1.3T | 66 | 22 | 35 | M8 | 50 |
| 2.5T | 84 | 30 | 44 | M10 | 100 |
| 5.0T | 104 | 40 | 52 | M10 | 150 |
| 10.0T | 125 | 50 | 62 | M12 | 200 |
Meiko Magnetics has always kept it firmly in mind that “ innovation, quality and customer’s requirements are the cornerstones of the enterprise”. We hope our expertise in magnetic assemblies can afford your better ideas. You can find all your standard requirements or customized magnetic system here for precast.
