Precast Aluminum Plywood Sideforms Fixing Magnets with Adaptor
Short Description:
The switchable button box magnet with adaptor could brilliantly hang onto the groove of aluminum formwork or support the precast plywood shutter directly. Meiko Magnetics is capable of designing and manufacturing various types of magnets and adaptors in line with customers' precasting shutter system
Due to the heavy dead weight of steel framework, it’s cumbersom for manual operation and the robot handling equipments lead to too much investment. Therefor, more and more precast plants choose aluminum profile or plywood siderails to form the concrete, especially in those areas, which are filled with competitive cost of wooden material, like Australia, Canada and else. In order to fit customer’s sideforms well, we used a special adaptor to support and fix the formwork from sliding and moving on basis of switchable shuttering magnets as a key functional part.

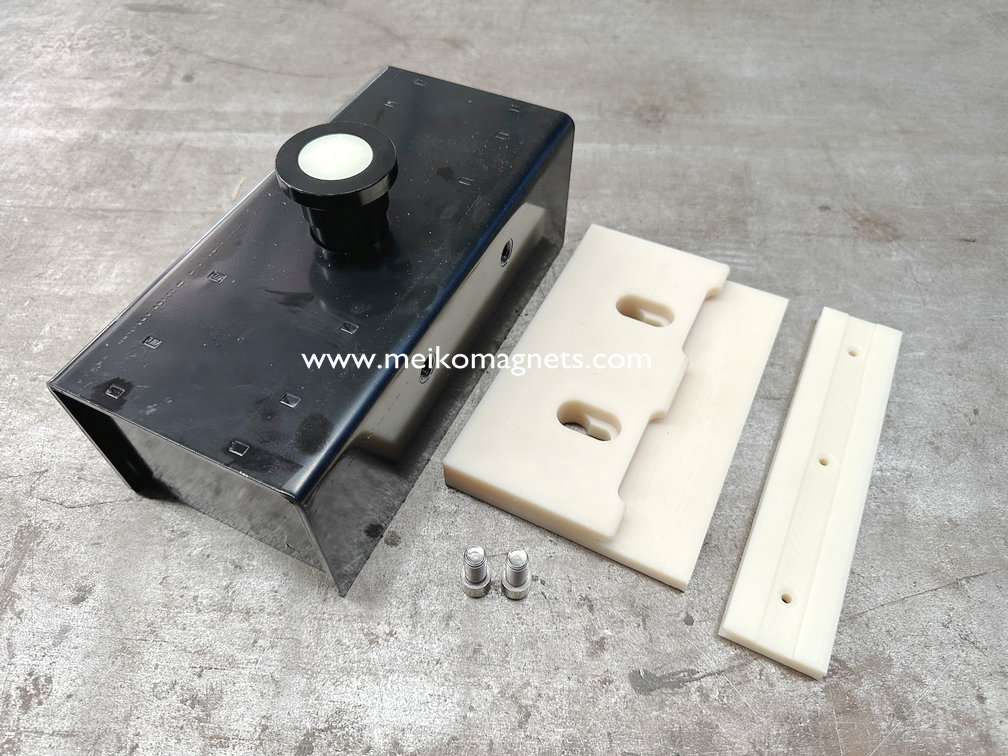

The adapting plates could be easliy attached to the box magnets with two small bolts. After aluminum profile placed, the magnet could be directly hanged onto it and push the button for magnet activing. When demoulding, use the lever bar to deactive the magnet and remove it for further maintenance and storage.
In some sites, when precaster only using plywood material without supporting aluminum profile, this magnet with adaptor could be workable as well. Just need to nail the additional small plate onto the plywood parallelly and then attach the magnet with hanging the particular groove on it.
Meiko Magnetics is a China-based precast concrete magnets manufacturer, mainly produce all retaining forces shutter magnets ranging from 450KG to 3000KG, adapters, precast emerged accessories holding magnets, magnetic and non-magnetic steel chamfers as well as magnetic shuttering siderails for manual or robot operating.
Thanks to our experienced and skilled technical teams, at present, we are equiped with numerous types of magnetic fixing systems and constantly innovate to process better magnetic solutions for our precasting customers.
ADAPTOR SPECIFICATION
| TYPE | L(mm) | W(mm) | T(mm) | Fitting Magnet Forces(kg) |
| Adaptor | 185 | 120 | 20 | 500KG to 2100KG |
